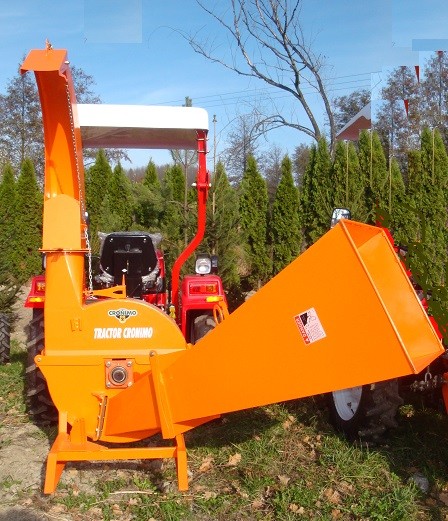

Chipper CRONIMO WCBX-62S for tractor, small tractor
Do you have a forest or garden, trees, shrubs, and do a lot of branches with which you do not know? With chippers can this unnecessary, unproductive waste reshape the wood chips, which is applicable to both heating and production pellet and adjustment garden. Wood chippers are a useful aid for each farmer, forester and gardener.Chippers CRONIMO make the produce branches wood chips size of 1-5 cm. With this wood chips can drown in conventional solid fuel boilers. Heating wood chips is a very good option for cheap and ecological heating, because wood chipper use of otherwise already disused branches of trees and shrubs, which are the gardens and the woods enough.
- Chipper CRONIMO type WCBX-62S tractor, mini tractor is the smallest and lightest chipper from a number WCBX.
- This chipper is simple and trouble-free machine. With its simple design is almost maintenance free. Grafting CRONIMO WCBX-62S is used for disposal of branches and wood waste to a diameter of 10cm.
- After processing in the wood chipper CRONIMO WCBX-62S arises wood chips the size of 1-5 cm. Wood chips can be composted, put the trees used for heating or for the production of wood pellets.

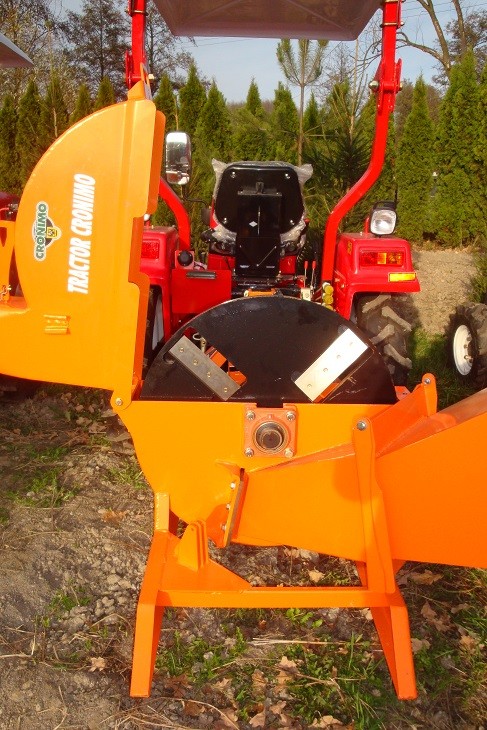

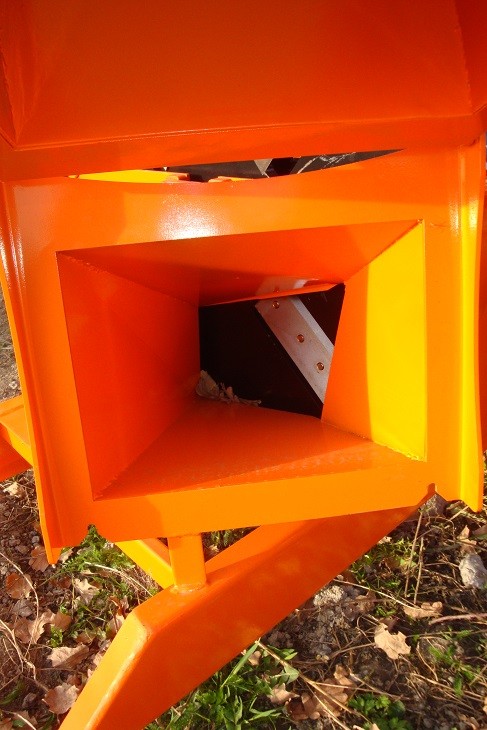

- Chipper CRONIMO WCBX-62S is equipped with four knives and counter knives from quality durable high speed steel.
- 170 kg weight chippers CRONIMO WCBX-62S is a good asset use these light wood chippers and small Japanese garden tractor Iseki, Kubota, Shibaura, Yanmar, Hinomoto, Mitsubishi etc.

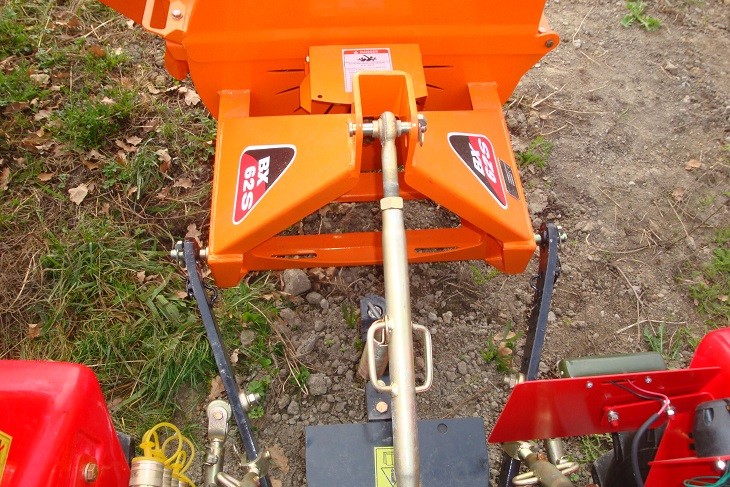

- Chipper is carried on the rear three-point linkage of the tractor.
- The price chippers also Kardan.
Model: wood chipper for tractor | BX-62S CRONIMO |
---|---|
Dimensions (D x W x H mm) | 1750x1100x2100 |
Weight (kg) | 230 |
Diameter of disc (mm) 4 KNIFE |
750 |
Max. inlet diameter (mm) | 150 |
Working capacity (m3 / h) | 7-9 |
PTO (r / min) | 540 |
PTO dimension | 6 x 8 x 520 mm |
Required min. power (horsepower) | 22 |
Wood chipper Model | WC42S CRONIMO | WC62S CRONIMO |
---|---|---|
Drive System | Direct drive, pto w / shearbolt | |
Engine | PTO of tractor | |
Chipper capacity | 4inch/Diameter of wood | 6inch |
Chipper Housing Opening | 4 "x10" | 6 "x 10" |
Rotor size | 25 ' | |
Number of Rotor Knives | 4 | |
Knife Type | Hardened Tool Steel | |
Feeding System | Mechanical | |
Dimensions (folded hopper) | 40 "L x 42" x 60 "H | |
Hopper Opening | 20 "x 20" | 20 "x 20" |
Discharge Hood Rotation | 360 degree | 360 degree |
Discharge Hood Height | 60 ' | 60 ' |
Rated RPM | 540-1000 | 540-1000 |
Weight | 170kgs |
270kgs |
Links to videos chippers WCBX-62S at work:
http://www.youtube.com/watch?v=t0sVAq2yEGE
Price 1515 EURO
Price with VAT 1833 EURO
